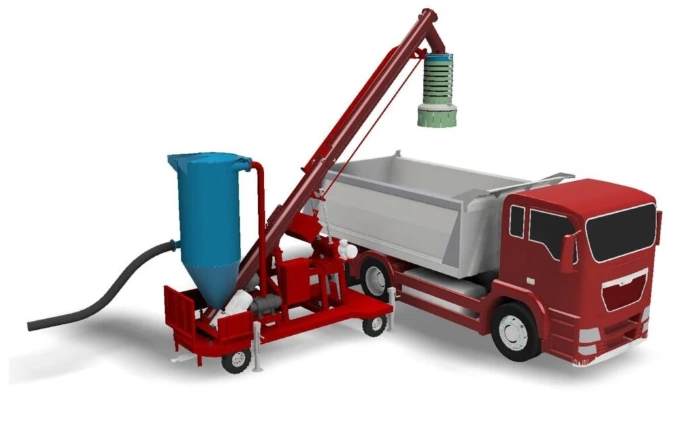

Mobile Bulk Material Vacuum and Truck Loading System
High-efficiency mobile vacuum and truck loading systems provide an engineered, dust-free solution for transloading bulk solids from stockpiles, silos, or big bags directly into tanker trucks. This integrated, towable platform combines pneumatic vacuum extraction with mechanical screw conveying to streamline bulk logistics operations while completely eliminating material loss.
Key Operational Advantages
Rapid Transloading: Maximizes material throughput with a high-capacity, automated transfer sequence.
Zero Material Loss: Enclosed negative-pressure pipeline design prevents product wastage and external spillage.
Environmental Integrity: Active dust containment maintains safe, clean facility air and satisfies strict regulatory standards.
Reduced Labor Demands: Automated sequence monitoring and remote controls minimize the need for manual operator intervention.
High Facility Mobility: A centralized wheeled chassis allows fast repositioning via tow-bar, forklift, or site vehicle.
System Operation
Deployment & Setup: The mobile system is towed adjacent to the bulk truck. Automated parallel screw jacks lift the inclined screw conveyor from its horizontal transport position to a 45° operating angle.
Vacuum Extraction: A high-performance vacuum blower draws raw material directly from open stockpiles or alternative containment mediums via a 12-meter flexible suction hose equipped with a targeted suction nozzle.
Cyclone Separation: The material enters a heavy-duty vacuum receiver cyclone. The bulk solids drop out of the air stream by weight into the bottom hopper, separating cleanly from the conveying air.
Mechanical Lifting: The material shifts from the cyclone hopper into the inclined screw conveyor, which mechanically lifts the bulk solids to the top of the truck platform.
Dust-Free Discharging: Material enters the tanker truck through a motor-driven telescopic loading chute. At start-up, the chute lowers automatically until its polyurethane-coated discharge cone forms an airtight seal against the vessel inlet, preventing particle escape.
Active Filtration & Equalization: During filling, an integrated pulse-jet dust collector evacuates air trapped inside the tanker vessel to increase the product filling rate. Built-in filter units trap airborne particulates and return them to the loader hopper via automatic pulse-jet valves.
Automated Shut-off: An integrated level sensor at the base of the discharge cone monitors product levels in the truck. Once full, the control system terminates loading, retracts the telescopic chute, and automatically lowers the screw conveyor back to the horizontal position for safe transport.
Technical Specifications & Components
| Component | Technical Description & Performance Specifications |
| Vacuum Receiver / Cyclone | High capacity; constructed from carbon steel or stainless steel; separates vacuumed bulk materials from the airflow and channels them to the screw feeder. |
| Flexible Suction Hose | 12-meter length; heavy-duty rubber construction (antistatic rubber configurations available upon request); fitted with a rigid suction nozzle. |
| Screw Conveyor | Manufactured from durable carbon steel or stainless steel; driven by a high-torque electrical motor with an industrial gearbox; drops down horizontally for transport. |
| Parallel Screw Jacks | Dual synchronized motorized units; automates the vertical lifting and horizontal lowering of the primary screw conveyor and telescopic chute assembly. |
| Telescopic Loading Chute | 250 m³/h high-capacity throughput; carbon steel construction driven by an electric motor and gearbox; equipped with a polyurethane cone seal. |
| Dust Collection System | Cartridge-type jet pulse filter with an integrated extraction fan; features 8 cartridges operating at 4–6 bar pressure; recycles collected particles back to the feeder. |
| Onboard Air Compressor | Dedicated pressurized air supply providing up to 6 bar maximum pressure to operate the automatic pulse-jet cleaning valves. |
| Electrical Control Panel | Industrial automation platform utilizing Siemens S7-1200 PLC architecture; includes both cabled and wireless remote control units for operator safety. |
| Heavy-Duty Mobile Chassis | Wheeled carbon steel chassis with an integrated tow-bar; features 4 independent swivel jacks to ensure optimal structural rigidity during truck loading. |
How the System Operates
1. Setup and Positioning
- The system is positioned near the bulk truck to be loaded.
- The screw conveyor is lifted to the operating angle.
- A secure connection is established between the loading bellow and the bulk truck inlet to prevent dust escape.
2. Vacuum Hose Handling
- Vacuum hose controlled by an operator is used to collect material from stockpiles.
- The suction unit transfers the material to a cyclone.
3. Material Transfer
- Material flows from the cyclone into the screw conveyor.
- The screw conveyor transfers the bulk material through the loading bellow into the bulk truck.
4. Dust Control
- The dust collection system operates throughout the loading process.
- It captures dust generated during transfer, ensuring a clean and safe environment.
5. Process Completion and Reset
- Once the bulk truck is fully loaded, the system automatically stops.
- The loading bellow retracts to its initial position.
- The screw conveyor returns to its starting angle, ready for the next cycle.
Key Components of the System
Mobile Chassis
- Supports the entire system on a reliable, transportable platform.
- Allows easy movement using forklifts or towing.
Vacuum Hose and Cyclone
- Rubber or antistatic hosing is used for collection.
- Vacuum cyclone is used to separate air and collected material.
Screw Conveyor
- Transfers material continuously and efficiently from the cyclone to the loading bellow.
- Adjustable elevation via lifting mechanism to align with bulk trucks.
- Powered by a motor to ensure smooth material movement.
Loading Bellow (Telescopic Chute)
- Connects securely to the bulk truck to transfer material safely.
- Designed to extend and retract for easy setup and breakdown.
- Helps maintain a dust-free loading operation.
Dust Collection System
- Filters airborne dust during the transfer process.
- Maintains a clean working environment and protects operator health.
Dust-Free Operation
The dust collection system effectively minimizes airborne particles.
Safe and Efficient
Secure connections and controlled material flow ensure operator safety.
Portability
Mobile chassis and retractable components enable easy transport and setup.
Customizable
Designed to meet specific operational needs for various bulk materials.
Cost-Effective
Reduces downtime and cleanup costs by maintaining clean loading conditions.
