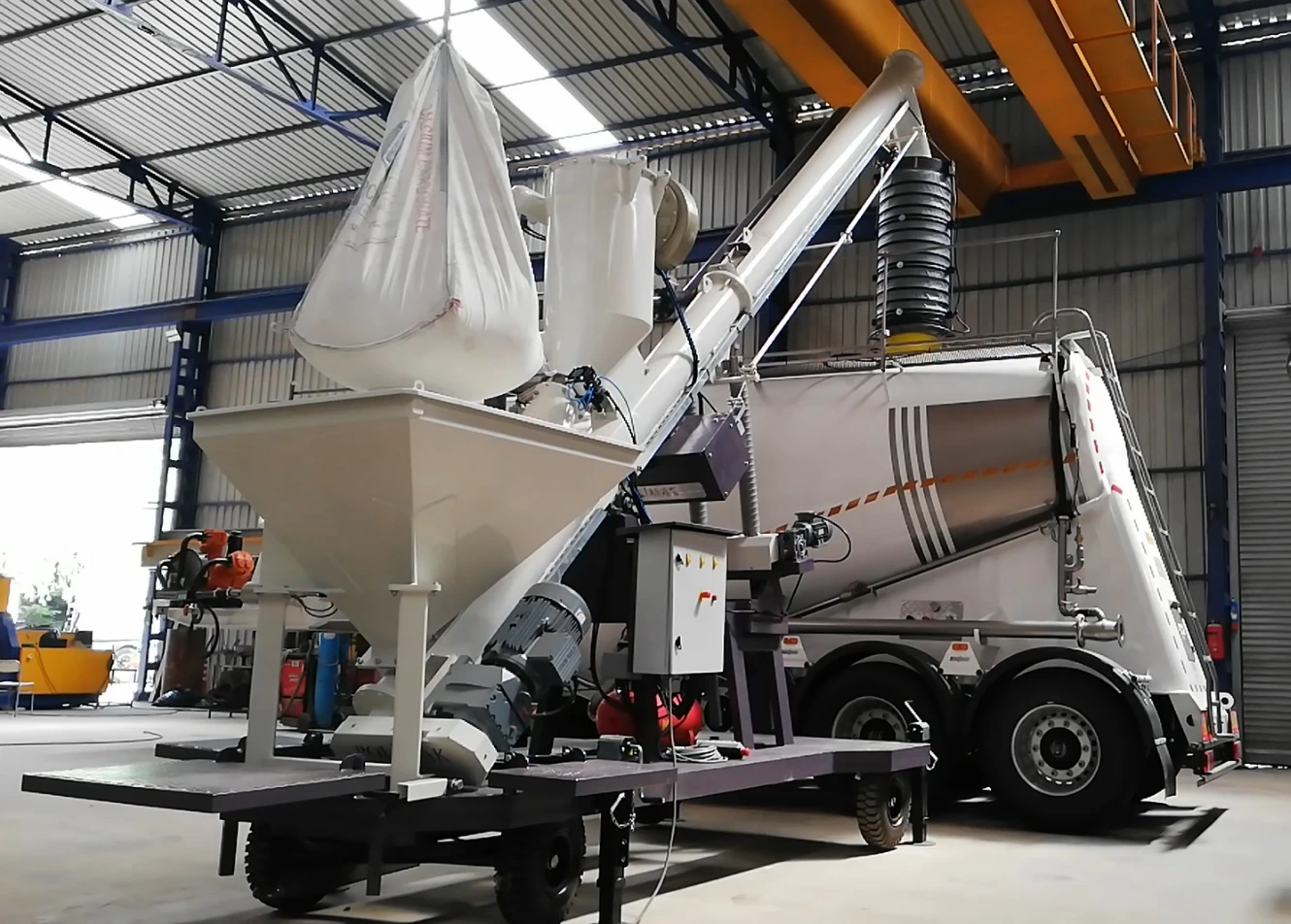

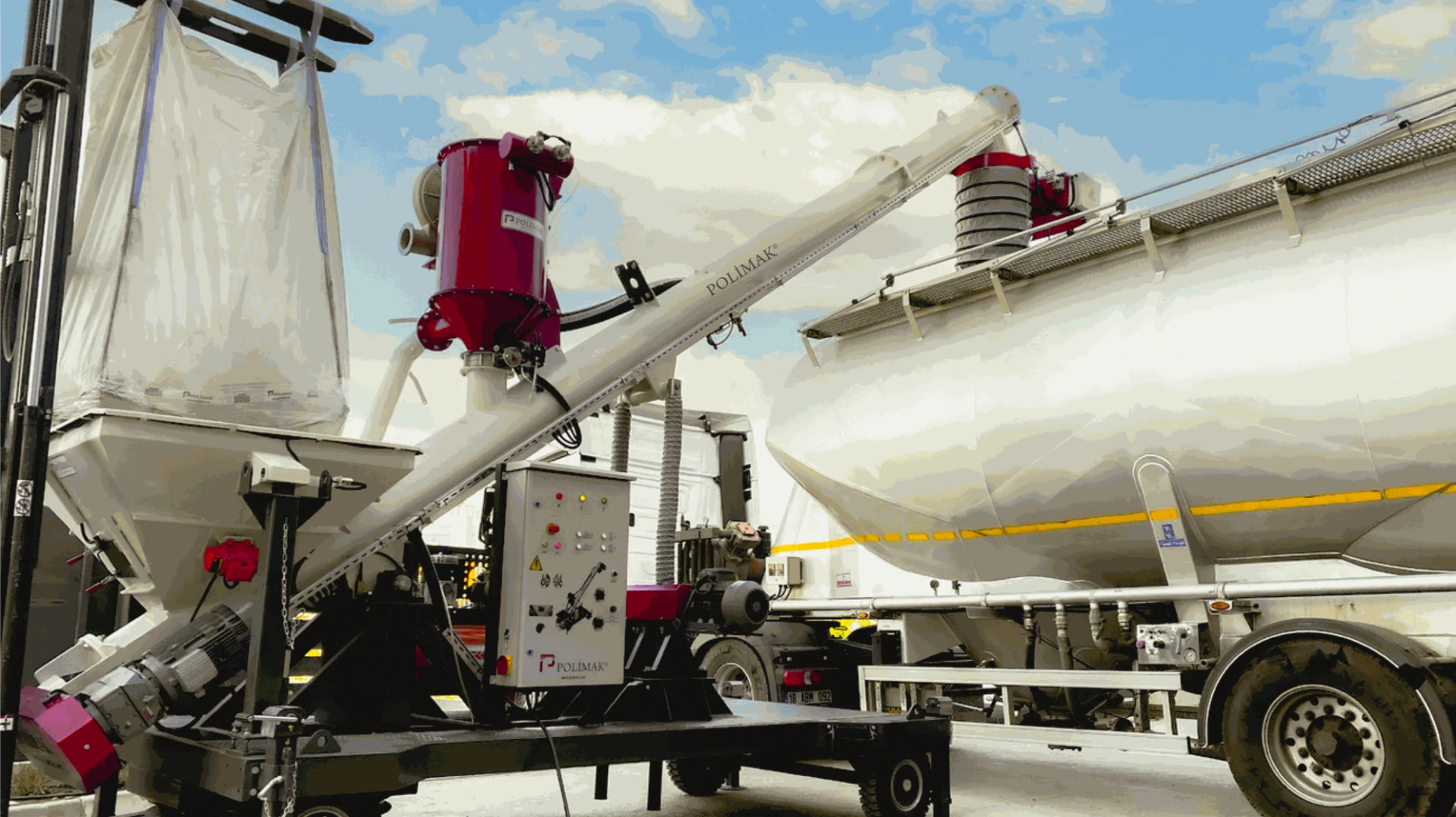

Mobile Bulk Bag Discharge Systems

The Mobile Bulk Bag Discharge System is a portable and efficient solution designed for unloading big bags of dry bulk materials. The system includes a mobile chassis, big bag discharger, screw conveyor, loading bellow, and dust collection system. It is engineered to provide safe, dust-free, and smooth handling of bulk materials in various industrial environments.

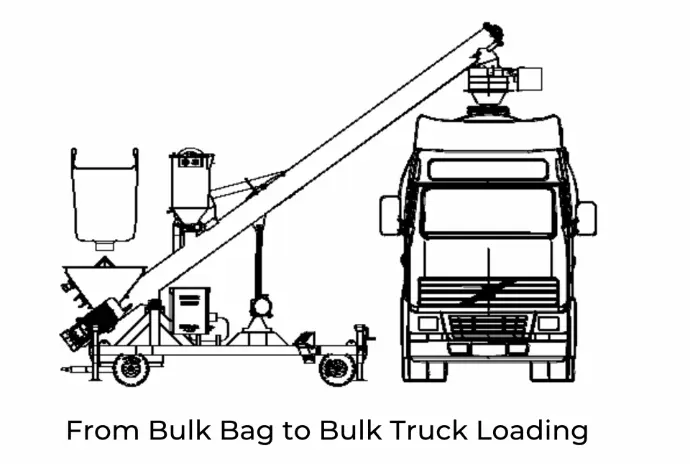

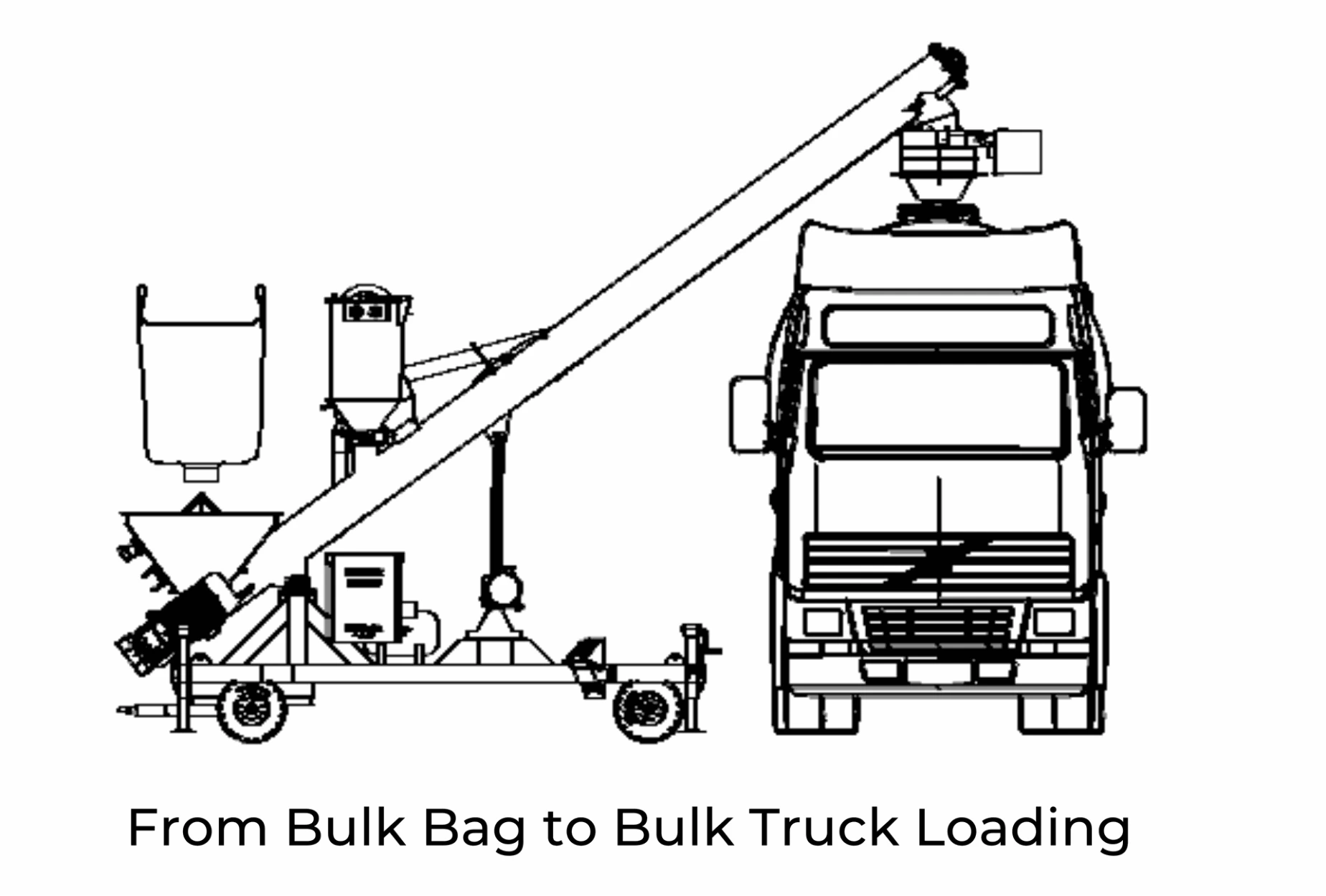

How the System Operates

1. Setup and Positioning

  • The system is positioned near the bulk truck to be loaded.
  • The screw conveyor is lifted to the operating angle.
  • A secure connection is established between the loading bellow and the bulk truck inlet to prevent dust escape.

2. Big Bag Placement and Opening

  • Big bags containing dry bulk materials are transported to the discharger using a forklift.
  • Big bags are placed on the big bag discharger.
  • Using big bag cutting knives, the bags are carefully cut open to start material discharge.

3. Material Transfer

  • Material flows from the big bag into the screw conveyor.
  • The screw conveyor transfers the bulk material through the loading bellow into the bulk truck.

4. Dust Control

  • The dust collection system operates throughout the loading process.
  • It captures dust generated during transfer, ensuring a clean and safe environment.

5. Process Completion and Reset

  • Once the bulk truck is fully loaded, the system automatically stops.
  • The loading bellow retracts to its initial position.
  • The screw conveyor returns to its starting angle, ready for the next cycle.

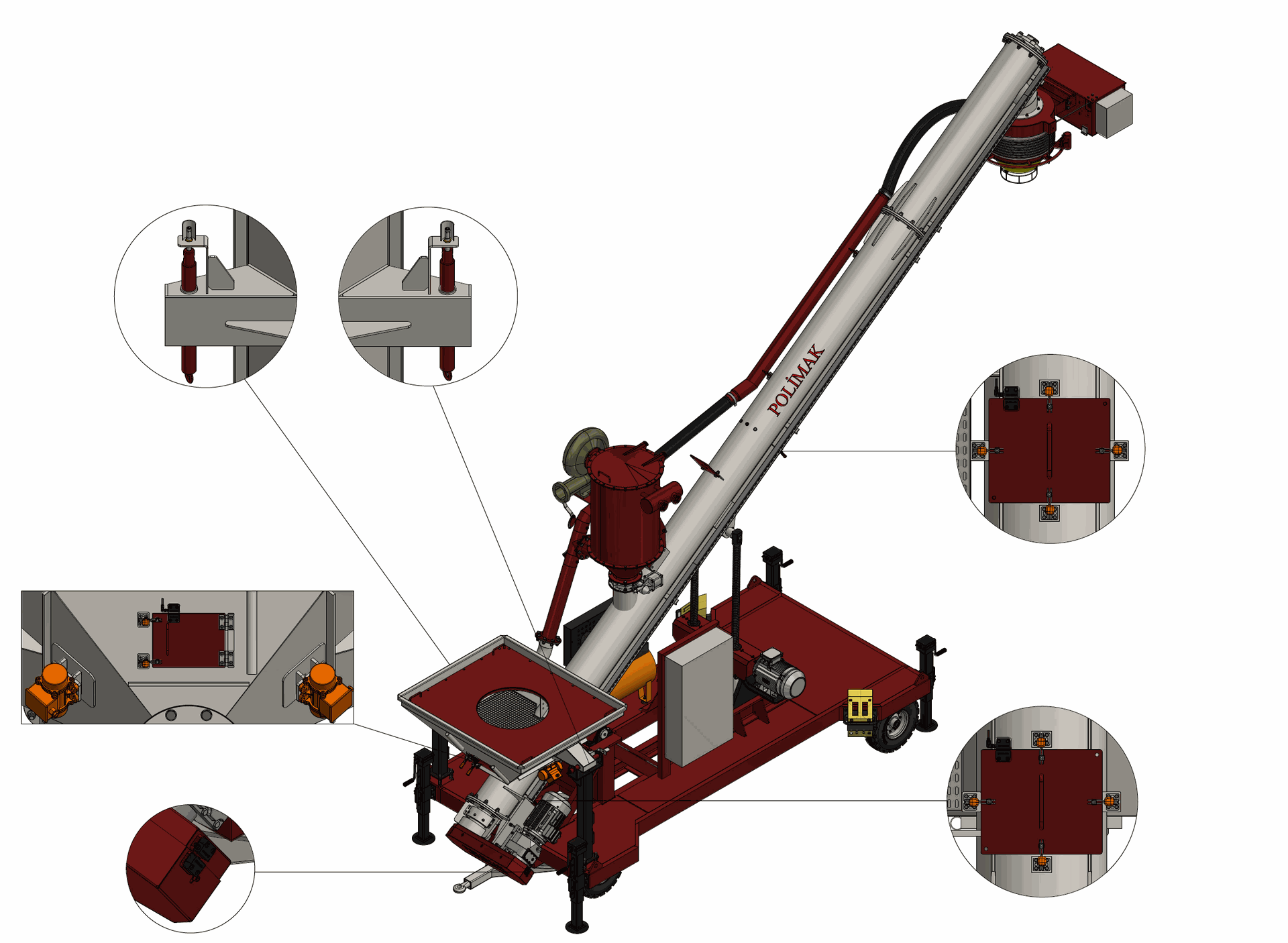

Key Components of the System

Mobile Chassis

  • Supports the entire system on a reliable, transportable platform.
  • Allows easy movement using forklifts or towing.

Big Bag Discharger

  • Holds the big bags securely for discharge.
  • Equipped with cutting knives to open bags safely and efficiently.

Screw Conveyor

  • Transfers material continuously and efficiently from the big bag to the loading bellow.
  • Adjustable elevation via lifting mechanism to align with bulk trucks.
  • Powered by a motor to ensure smooth material movement.

Loading Bellow (Telescopic Chute)

  • Connects securely to the bulk truck to transfer material safely.
  • Designed to extend and retract for easy setup and breakdown.
  • Helps maintain a dust-free loading operation.

Dust Collection System

  • Filters airborne dust during the transfer process.
  • Maintains a clean working environment and protects operator health.



  Dust-Free Operation

The dust collection system effectively minimizes airborne particles.

Safe and Efficient

Secure connections and controlled material flow ensure operator safety.

​

Portability

Mobile chassis and retractable components enable easy transport and setup.

Customizable

Designed to meet specific operational needs for various bulk materials.

Cost-Effective

Reduces downtime and cleanup costs by maintaining clean loading conditions.

​
